Number Variable Rules

PreviousHow Rules WorkNextString Variable Rules

Last updated 1 year ago

Was this helpful?

Use Number Variables to track the number of times a viewer performs an action or to store a score or any other number.

Example Experience where you can track the number of times the viewer enters a zone:

(Try walking into the blue zone and see the count increment)

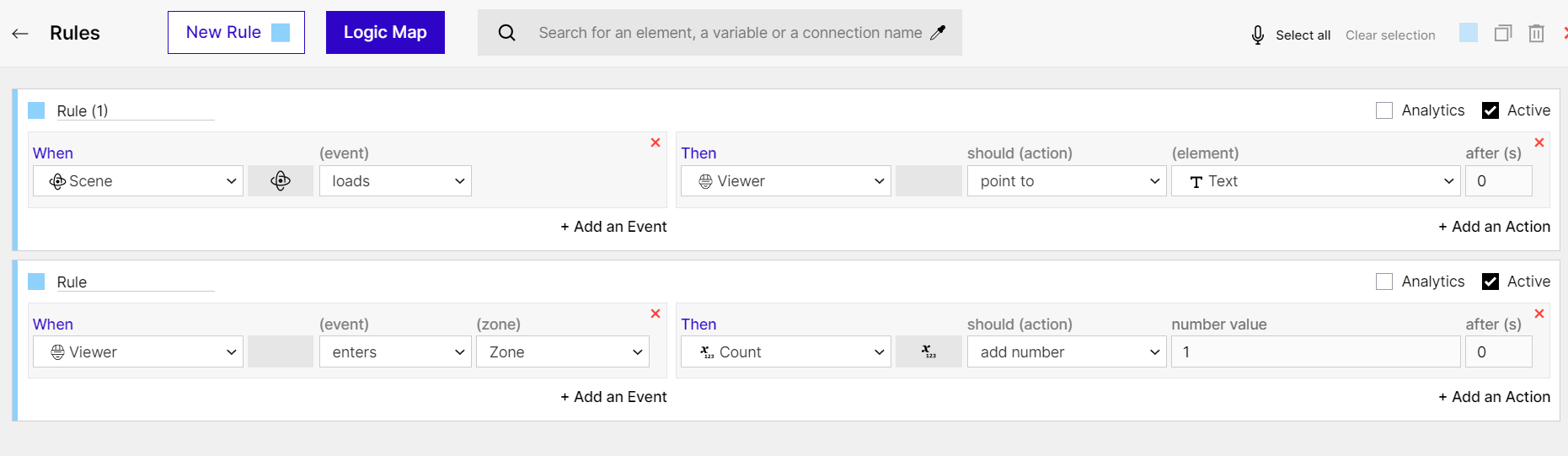

These are the rules that were used in the above experience:

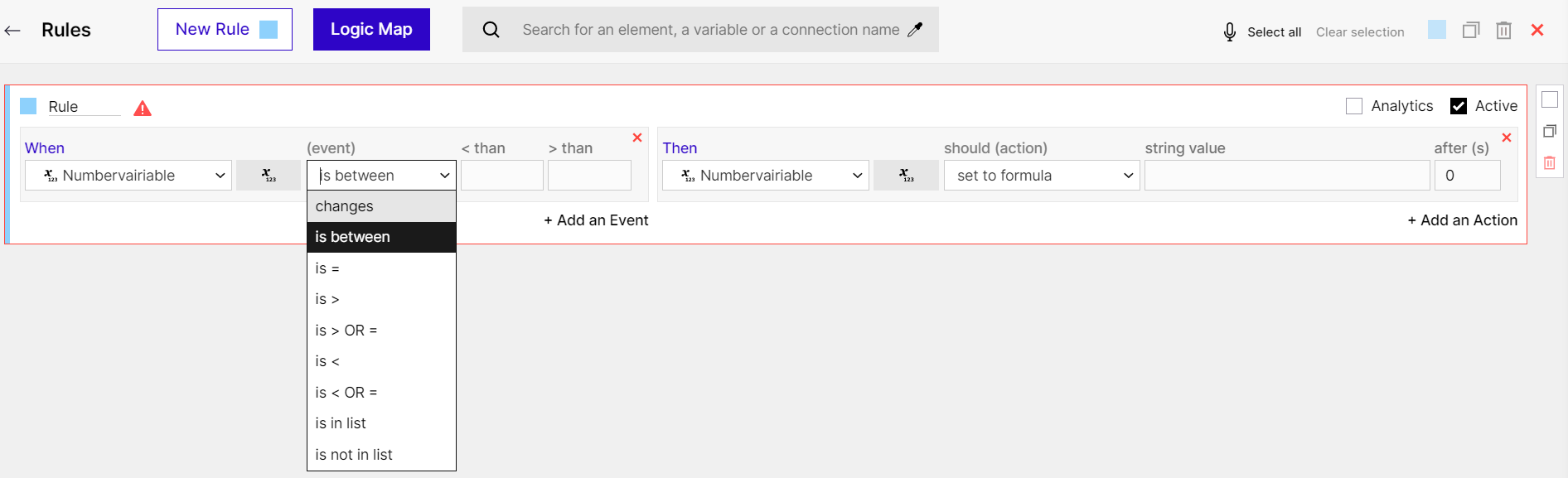

Number: When Rules

  1. changes: Gets triggered if the number variable undergoes a change.

  2. is between: Gets triggered if the number variable is within a certain range.

  3. is =, is >, is > OR =, is <, is < OR =: Comparison operators that trigger when the given condition becomes true.

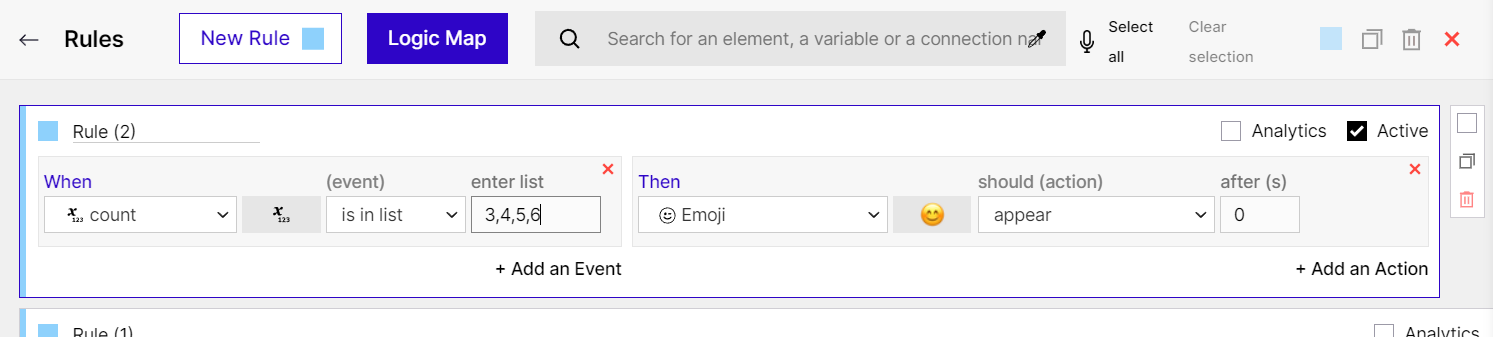

  4. is in the list / is not in the list: A certain action can be triggered if the number value exists in a given comma-separated list.

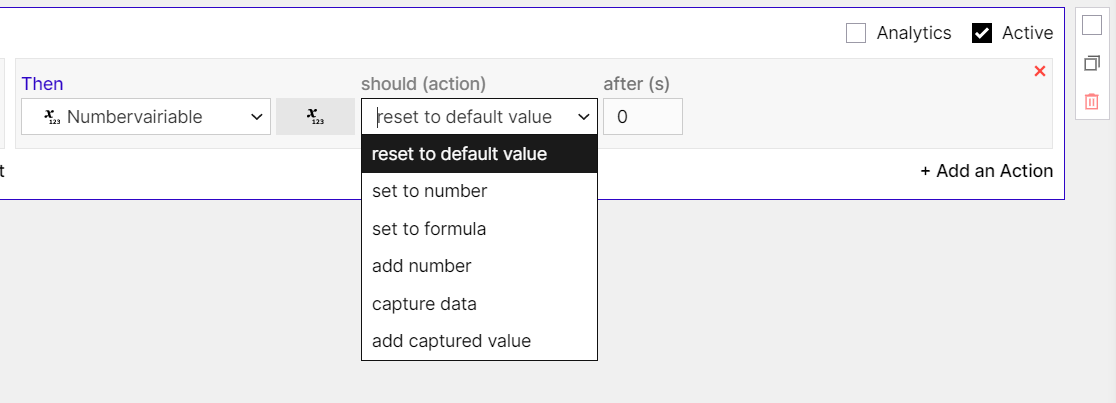

Number: Then Rules

  1. reset to default value - This will set the variable back to its default value.

  2. set to number - This action allows you to set the variable to a particular number.

  3. set to formula - This action enables you to use a formula that generates results to set the value of the variable.

  4. add number - This action allows you to add a particular number to the variable.

  5. add captured value - This action adds the captured value to the variable (instead of replacing it with the value).

Number: Formulas

You can do a lot with the Then option set to formula for Numbers.

Mathematical Expressions

You can write any formula in the "Set to formula" value to get it evaluated by GMetri.

The following types of expressions are supported:

Input
Result
Explanation

2+3-1

4

Addition and Subtraction operator

2*5/10

1

Multiplication and Division operator

tan45 or tan(45)

1

Trigonometric Function (tan in Degree mode)

tan45 or tan(45)

1.619775190543862

Trigonometric Function (tan in Radian mode)

Pi1,15,n or Pi(1,15,n)

1307674368000

Product of Sequence

Sigma1,15,n or Sigma(1,15,n)

120

Sum of Sequence (also called summation)

2^3

8

Exponent (note this operator is left associative like MS Office)

5P3

60

Permutaion Method to calculate all the permutaions

sincostan90 or sin(cos(tan(90)))

0.017261434031253

Multiple functions with or without parenthesis (both works)

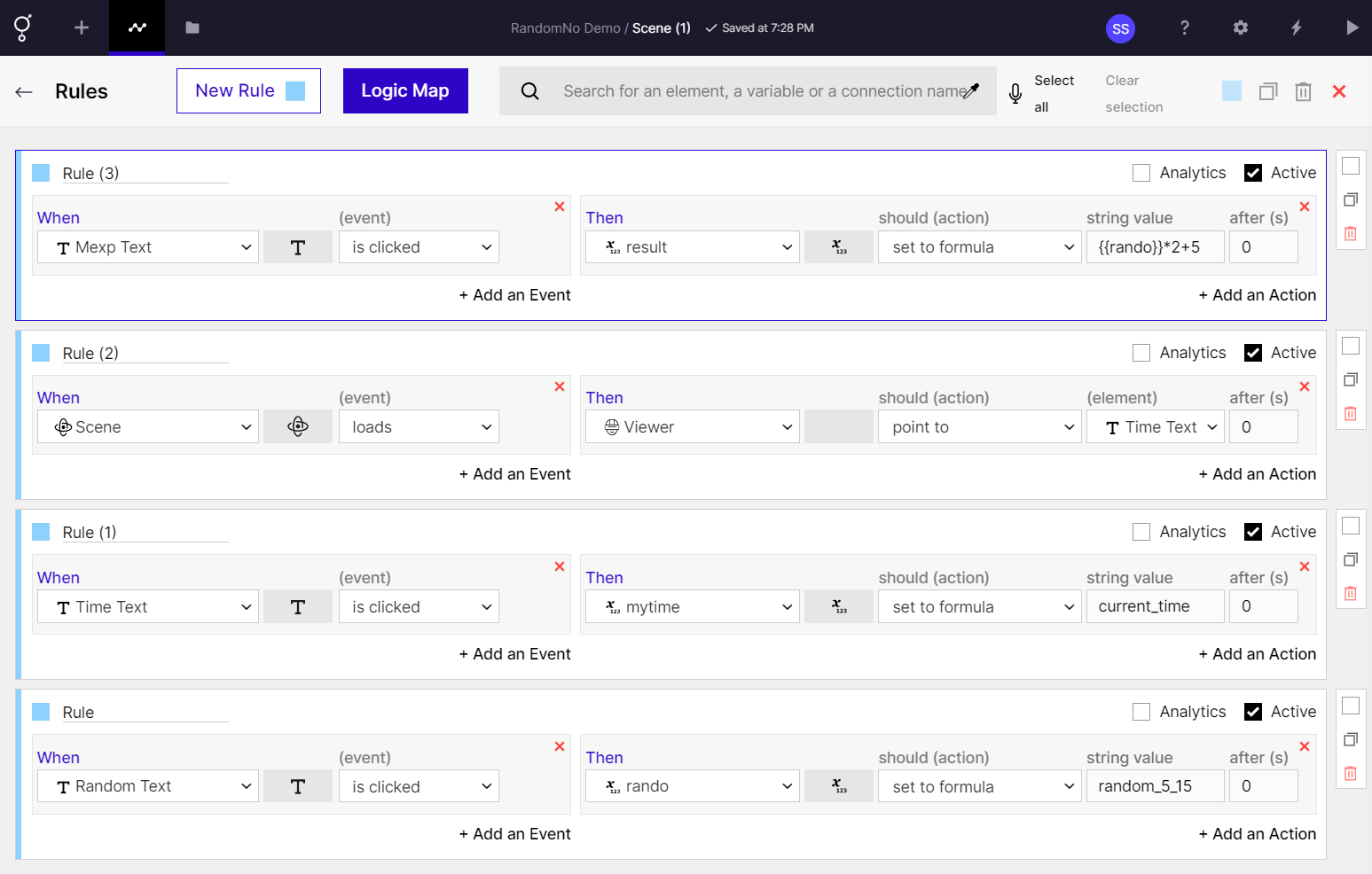

Random Number

Set the "Set to formula" value to random_<from>_<to> to generate a random number. Replace "<from>" and "<to>" with numbers, no spaces in between - like random_0_5. For example, if you want to generate a random number between 3 and 8, you should set this to random_3_8.

Current Time

Set the "Set to formula" value to current_time to save the current epoch time (in ms) in a number variable.

Rules used in the above experience:

Rules - Number Variables
Number: When Rules
Is In List Rule

capture data - This action copies the value from the "When" side of the rule. Check .

Number: Then Rules

Formula expressions also support .

Formula based rules
Variable Substitution
Example Experience to track how many times the viewer enters the blue zone
Number: formulas
#capturing-user-input
